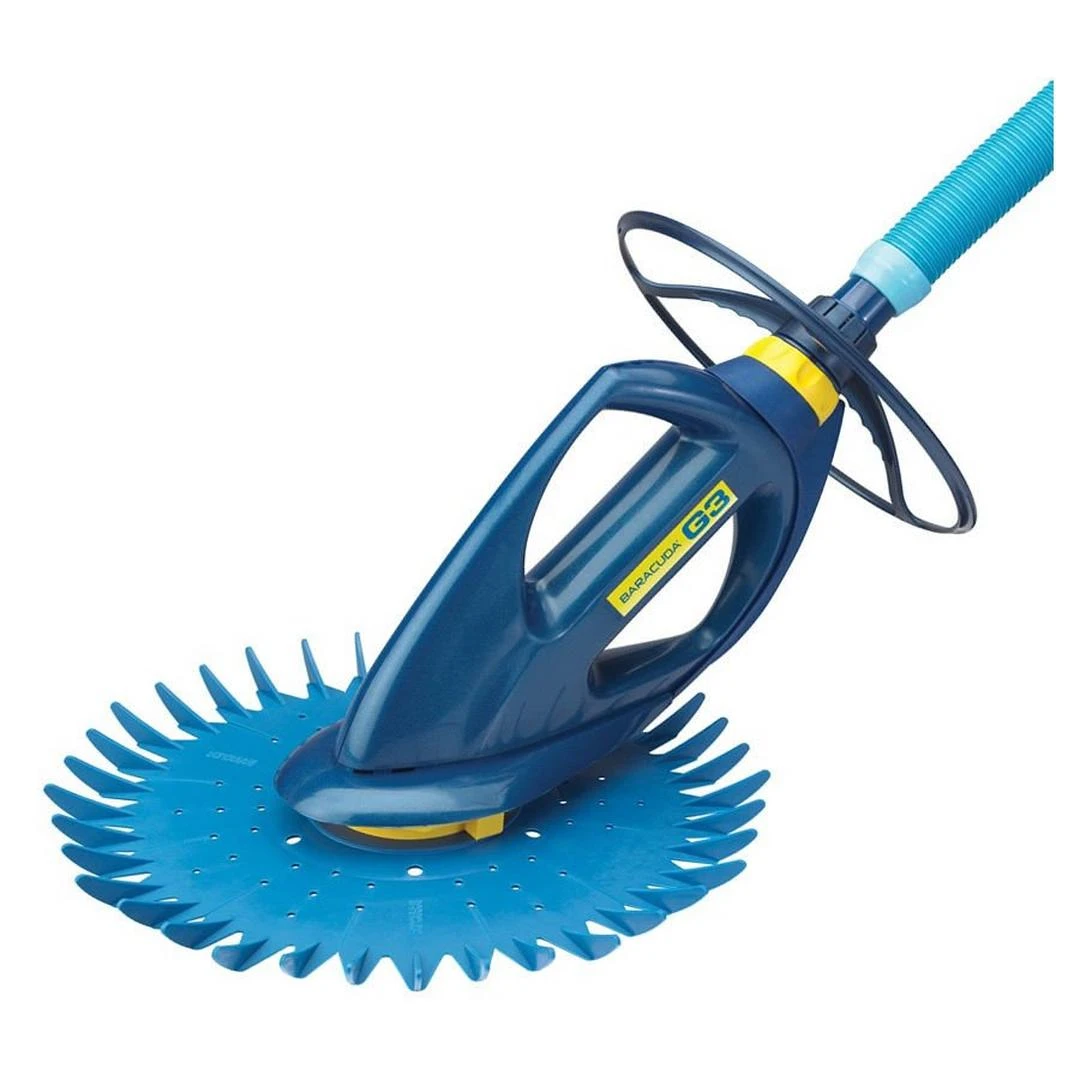

Zodiac – G3 Advanced Suction Side Automatic Pool Cleaner

The Zodiac G3 Suction Side Pool Cleaner is easy to install, adjustable, and effortlessly maneuvers around your in ground pool to keep it clean and clear.

The Zodiac Baracuda G3 Advanced Suction Side Automatic Pool Cleaner delivers efficient, effective cleaning performance that is compatible with low-speed pool pumps for maximum efficiency. The G3 assembles in 3 simple steps. Just attach the disc, wheel deflector, and hose, then connect to the pool skimmer or dedicated suction line and it’s ready to go. No special tools or plumbing is needed for construction. The Zodiac G3 scrubs and vacuums your in-ground pool’s floors, walls, and maneuvers around obstacles with ease.

Scrubbing & Vacuuming Made Easy

The Zodiac G3 is great for picking up small and medium sized debris littered around your pool’s floor and walls. The Zodiac Baracuda G3 comes complete with 39 feet of hose, FlowKeeper valve, hose weight, flow gauge, and elbow connector. When you connect the G3 pool cleaner to your pool’s skimmer, the FlowKeeper Valve helps regulate the water flow to ensure the pool pump and cleaner run properly. This compact self-adjusting flow control valve automatically regulates water flow, ensuring peak performance even with low-speed pumps. If connecting to a dedicated vacuum line, just attach the hose to the vacuum port on the side of the pool.

Zodiac G3 Suction Pool Cleaner Features

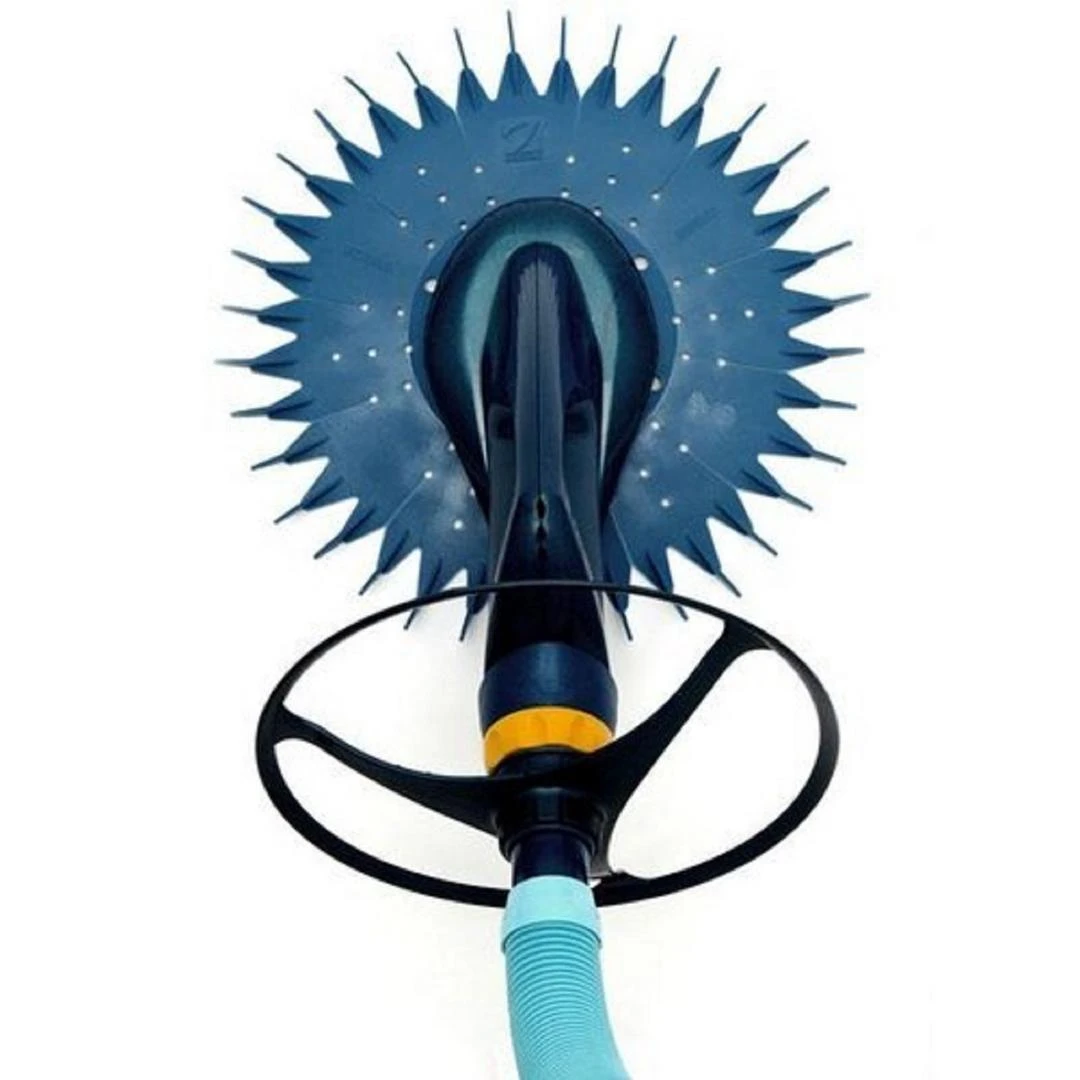

Long-Life Diaphragm and Hose ensure superior, reliable technology. The Long-Life Diaphragm is the only moving part on the G3 suction-side automatic pool cleaner. No gears, wheels or flappers for simple, silent operation and low-cost maintenance. The 36-Disc Fin on the Zodiac Baracuda G3 provides maximum adhesion on all pool surfaces, and eliminates hang-ups on lights, drain covers and fittings. Zodiac’s Patented Quick-Release Cassette allows for quick and easy access to the diaphragm for simple maintenance.

For added efficiency, add a Zodiac In-Line Leaf Catcher Canister to help trap debris before it reaches the pool skimmer. The Leaf Catcher is recommended for pools with excessive amounts of leaves and debris (sold separately).

The Zodiac G3 Advanced Suction Side Pool Cleaner is easy to install and easily maneuvers around your in ground pool to keep it clean and clear. Use the Baracuda G3 Suction Side Automatic Pool Cleaner to effectively keep your pool clear of dirt and debris.

Please Note: It’s important to use the included FlowKeeper valve when connecting to a skimmer to adjust and regulate the amount of flow and suction to the cleaner for optimal performance.

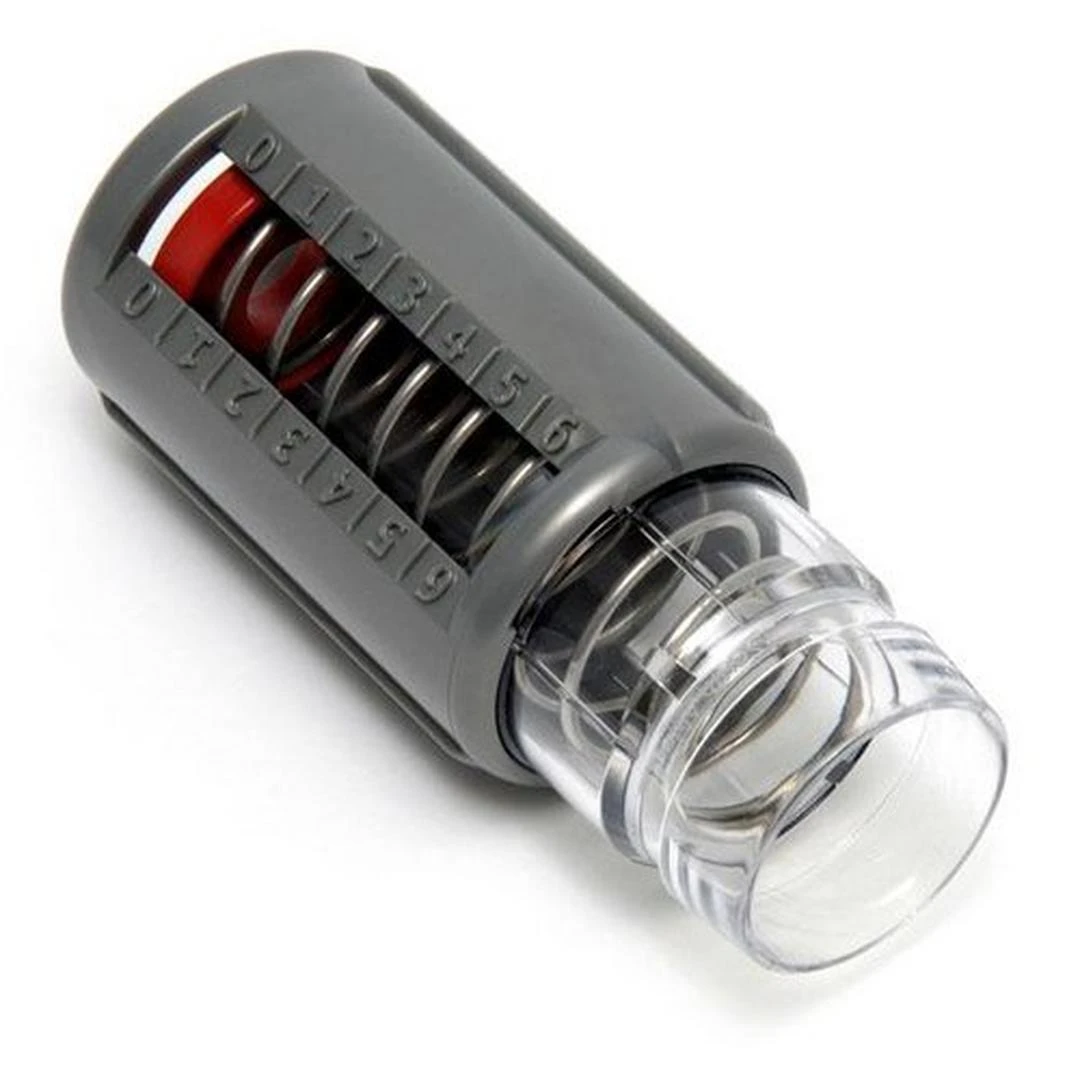

Use the included flow gauge to test and adjust for proper flow. Verify that the red indicator in the flow gauge is in the middle at the number 3 setting. Please review the Owner’s Manual for more details.

Common Questions:

How long is the hose that comes with the Zodiac G3?

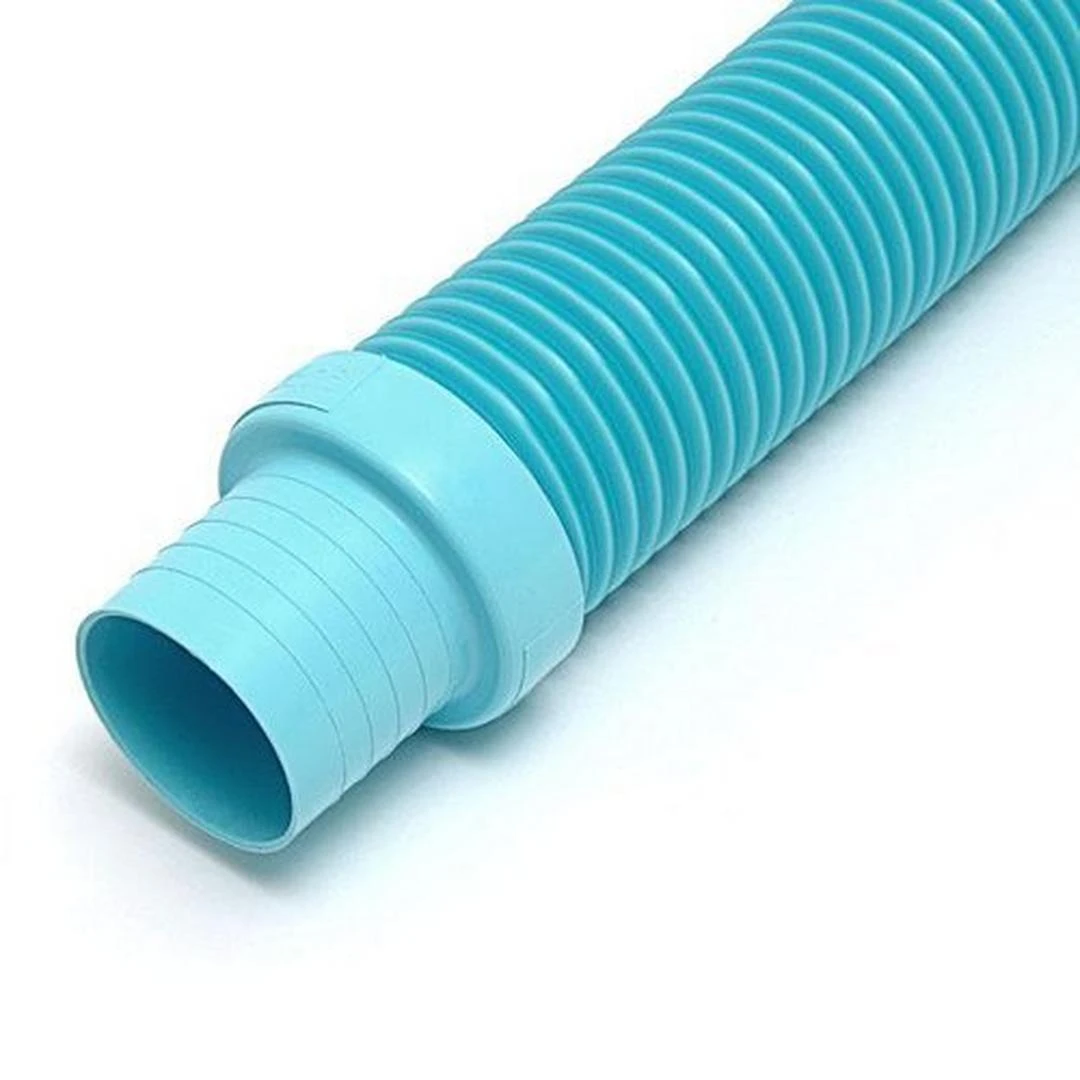

• The Zodiac G3 will come with 3 ft. standard hoses (13 connector hoses) totaling 39 ft.

Does the Zodiac G3 clean in a pattern motion?

• No, The Zodiac G3 is a mat style cleaner. Meaning the cleaner moves randomly along with the direction of water flow.

How many moving parts does the Zodiac Baracuda G3 have?

• The Zodiac G3 only has one moving part – the Long-Life Diaphragm. If the cleaner is not moving, check the diaphragm for any punctures, tears or holes. If damage is found, replace with a new diaphragm.

What size pool was the Zodiac G3 designed for?

• The Zodiac G3 is designed for small to medium sized pools.

Zodiac G3 stops and starts randomly.

• Check the diaphragm for blockage or damage. Adjust worn diaphragm by loosening cassette swivel, gently pushing down on inner pipe & retightening cassette swivel.

Zodiac G3 won’t leave the edge or rim of the pool.

• Using the Flow Gauge as a guide, reduce flow to the cleaner.
• Verify correct hose weight positioning.
• Move the hose weight away from the cleaner slightly.

Cleaning Area:	Floor, Walls and Waterline
Pool Surface:	All Surfaces
Booster Pump:	Not Required
Installation Type:	Residential
Product Type:	Pool Cleaner
Pool Cleaner Type:	Suction Side
Pool Type:	In Ground
Cord/Hose Length:	39 ft
Surface Type:	Vinyl
Surface Type:	Concrete / Gunite
Surface Type:	Fiberglass
Product Dimensions:	9″ Width x 41″ Length x 19″ Height
Product Weight:	21 lbs.
Manufacturer:	Zodiac
Warranty:	90-Day
